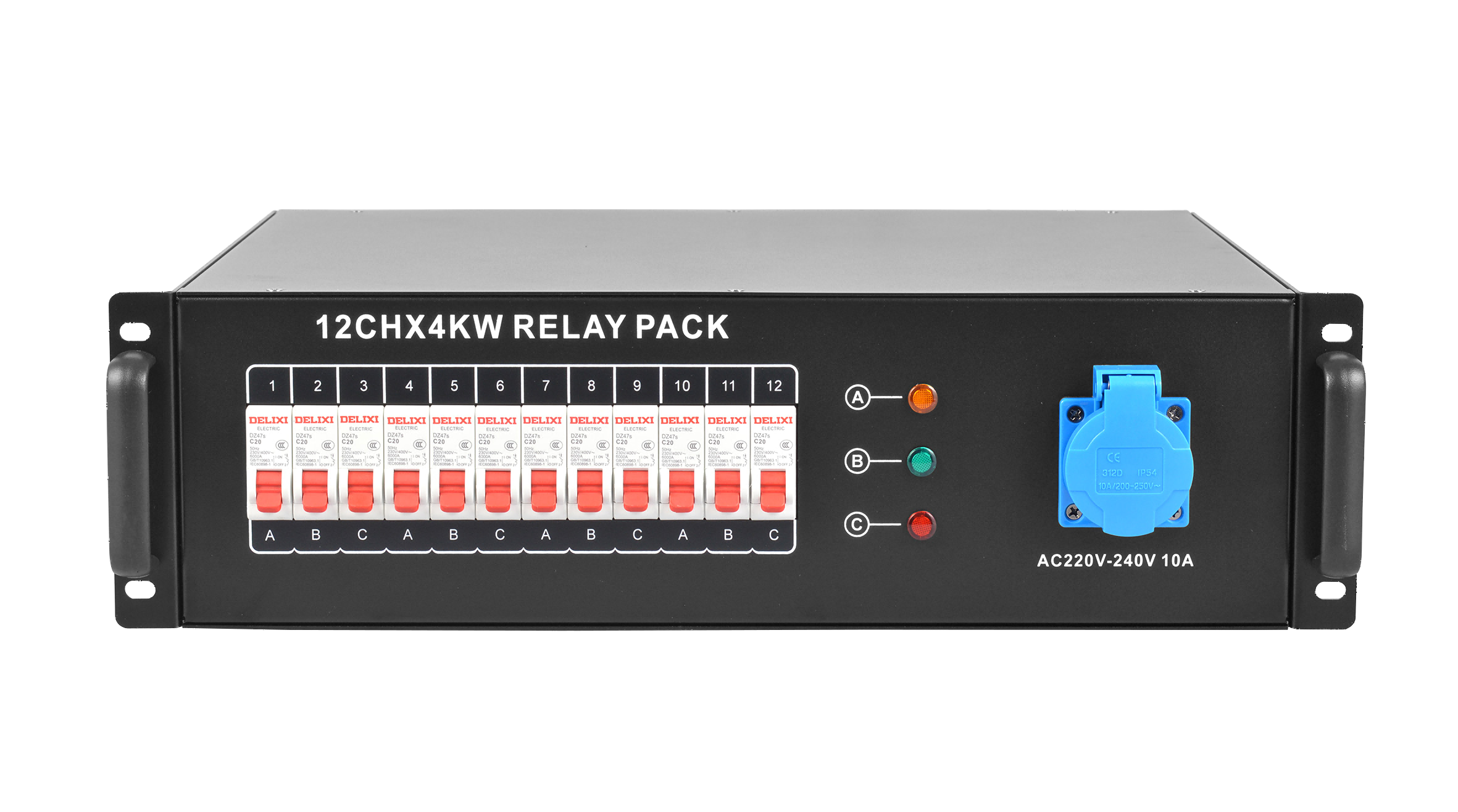

1. Power Supply: Input via terminal block, three-phase five-wire system AC380V±10%, frequency 50Hz±5%.

2. Maximum Output: 12 channels × 4KW; suitable for any load.

3. Each channel has a 20A circuit breaker, with dual protection against overload and short circuit using high breaking capacity air switch.

4. Equipped with 12 channels of 40A bakelite plug outputs;

4. A, B, C three-phase operation indicator lights. Provides two-pin and three-pin universal sockets for convenient use.

5. Installation Method: Cabinet installation, 3U

6. Product Dimensions: 485*430*145MM, Net Weight: 8.5KG

7. Packaging Dimensions: 530*495*190MM, Gross Weight: 10.6KG
