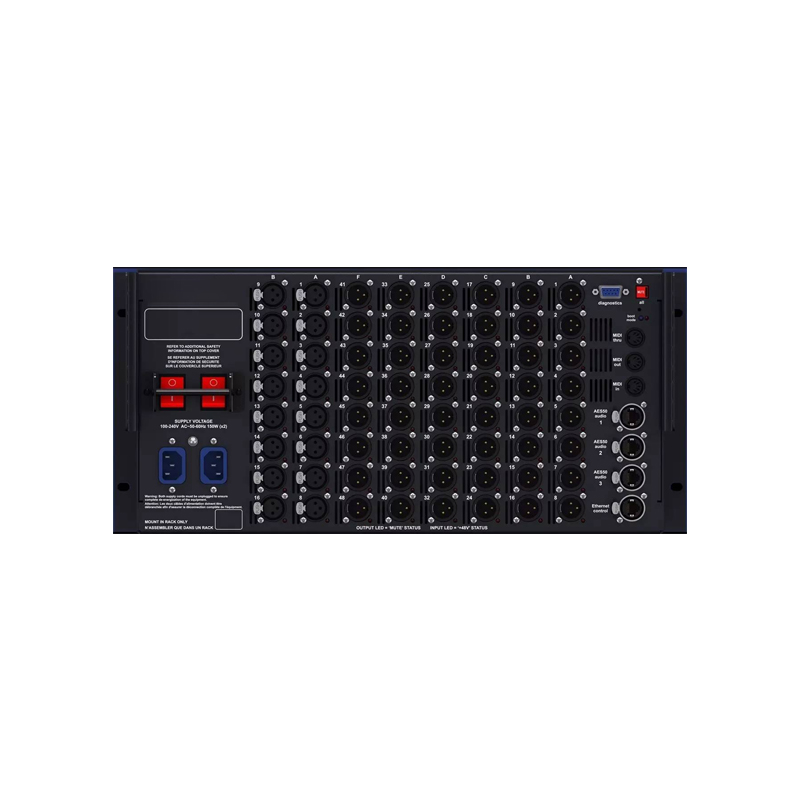

Has a fixed standard of 48 inputs and 24 outputs. The number of outputs can be increased to 32 by using two additional output slots (via insert line output, AES output, or Aviom). The 48 inputs can be configured as 48 microphone inputs or 24 microphone/24 AES inputs. There are two MADI ports, supporting BNC or CAT5E cable connections. Allows the interface box to be shared with two mixing consoles or digitally separated during recording. When operating at 96K, these two ports combined create a high-resolution 96K MADI connection without reducing the I/O. Dual redundant power supply, with corresponding LED indicators on the front panel. The menu system allows interface box settings, control, and activation of the internal oscillator for customization.
