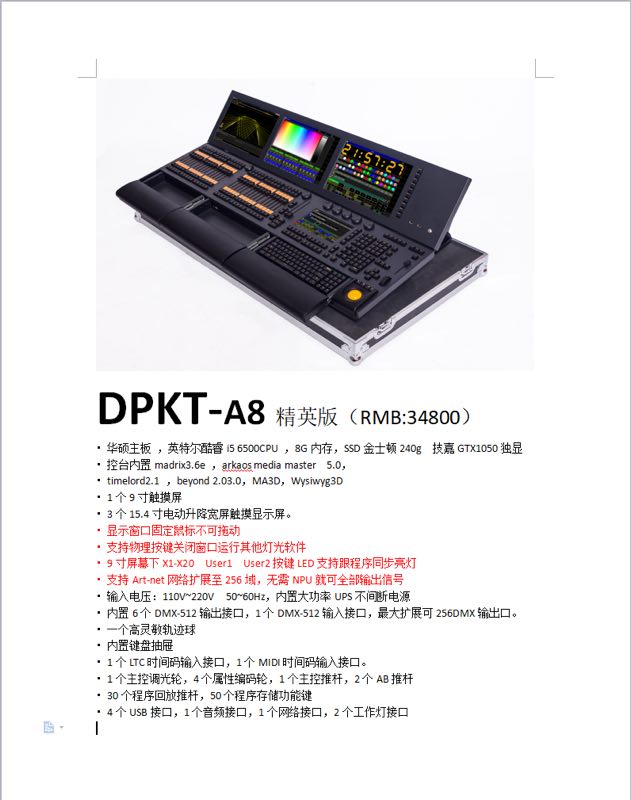

Model: DPKT-A8 Deluxe Edition
Motherboard: ASUS motherboard
CPU: Intel Core i5-6500
Memory: 8GB
Storage: 240GB SSD
Graphics Card: GTX1050 dedicated graphics
Built-in Software: Madrix 3.6e, Arkaos Media Master 5.0, Timelord 2.1, Beyond 2.03.0, MA3D, Wysiwyg3D
Main Display: 1 × 9-inch touch screen
Auxiliary Displays: 3 × 15.4-inch motorized lift touch screens
Screen Feature: Fixed screen icons, non-draggable
Physical Button Support: Can directly operate without closing other lighting software
Program Sync Support: 9-inch screen with X1–X20, User1, User2 button LED synchronization
Network Protocol: Supports Art-Net, up to 256 universes, full signal output without NPU
Input Voltage: 110V–220V, 50/60Hz
Power Supply: Built-in high-power UPS uninterruptible power supply
DMX Output: 6 × DMX512 output ports
DMX Input: 1 × DMX512 input port
DMX Expansion: Expandable up to 256 DMX outputs
Trackball: 1 high-sensitivity trackball
Keyboard: Built-in keyboard
Timecode Input: 1 × LTC timecode input
MIDI Input: 1 × MIDI timecode input
Playback Controls: 1 main control wheel, 4 attribute encoder wheels, 1 main push encoder, 2 AB faders
Macro Buttons: 30
Show Storage: 50 program storage slots
USB Ports: 4
Audio Port: 1
Network Port: 1
Work Light Ports: 2
